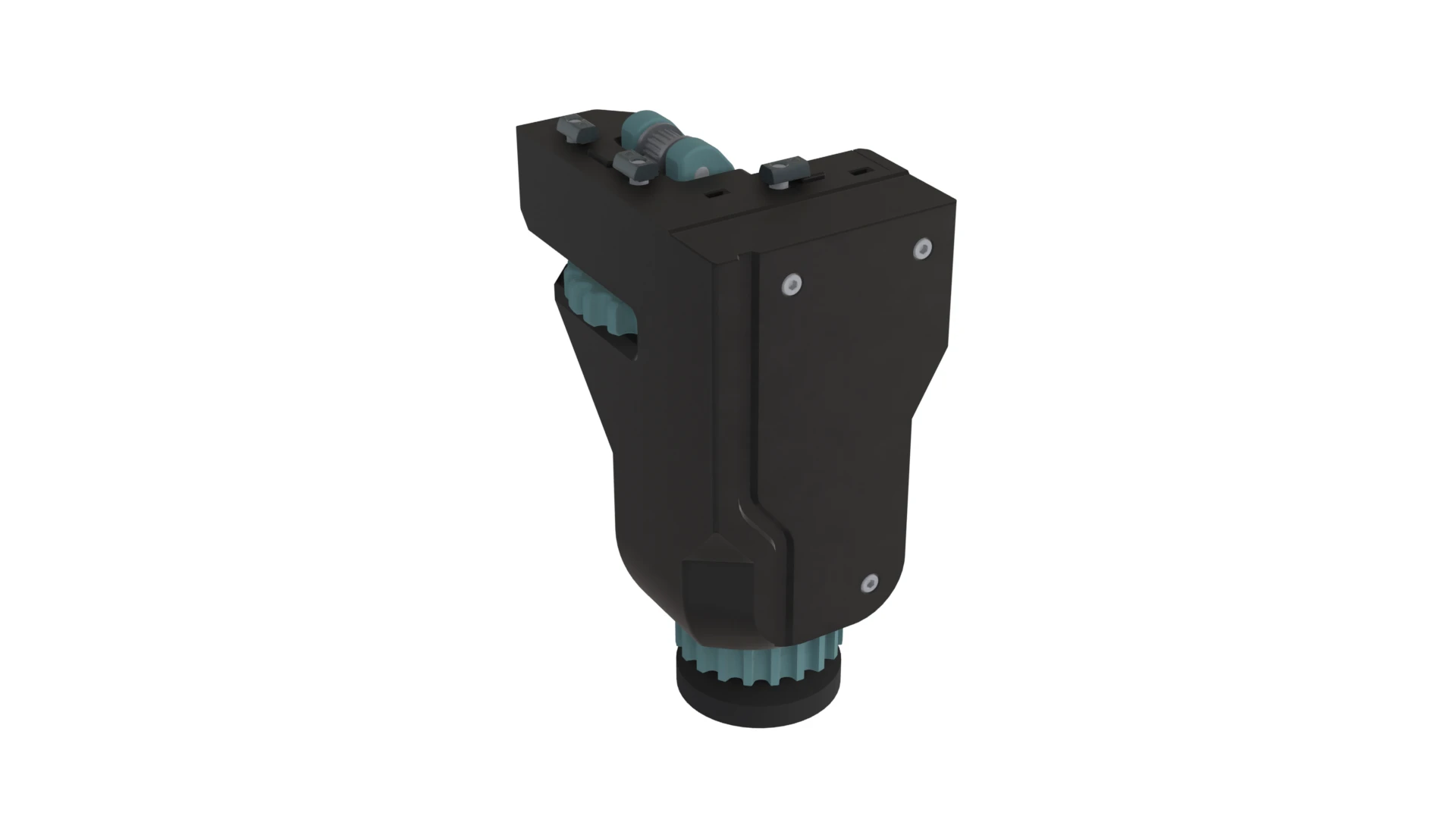

Front Foot
Materials
| Hardware | Qty | |
|---|---|---|
| Gates GT2 Toothed Idler Pulley - 9mm Belt | 1 | |
| M5x60 BHSC | 3 | |
| M5x35 BHSC | 2 | |
| M5x30 BHSC | 2 | |
| M5 Hex Nut | 4 | |
| M5 T-Nut | 3 | |
| M8 Swivel Foot | 1 | |
| M8 Hex Nut | 1 | |
| M3x35 SHSC | 2 | |
| M3x45 SHSC | 1 | |
| M3 Hex Nut | 2 |
Steps
1. Attach the Foot Housing to the Frame
- Place the M5 Hex Nuts and M3 Hex Nuts in their slots
- Place three M5 T-Nuts in the bottom slots of the frame
- Use two M5x35 BHCS to attach the Foot Frame to the Frame. Use the M5x60 BHCS to align its corresponding t-nut then remove it for now
- Use two M5x60 BHCS and two M3x35 SHCS to attach the Foot Base to the Foot Frame
2. Assemble the Tensioner
- Place an M5 Hex Nut in the Z Tensioner knob and slide the knob under the tensioner housing
- Place an M5 Hex Nut under the Tensioner and screw an M5x30 BHCS through the Tensioner and Nut
- Screw an M5x30 BHCS through the Tensioner and GT2 Idler Pulley - 9mmm

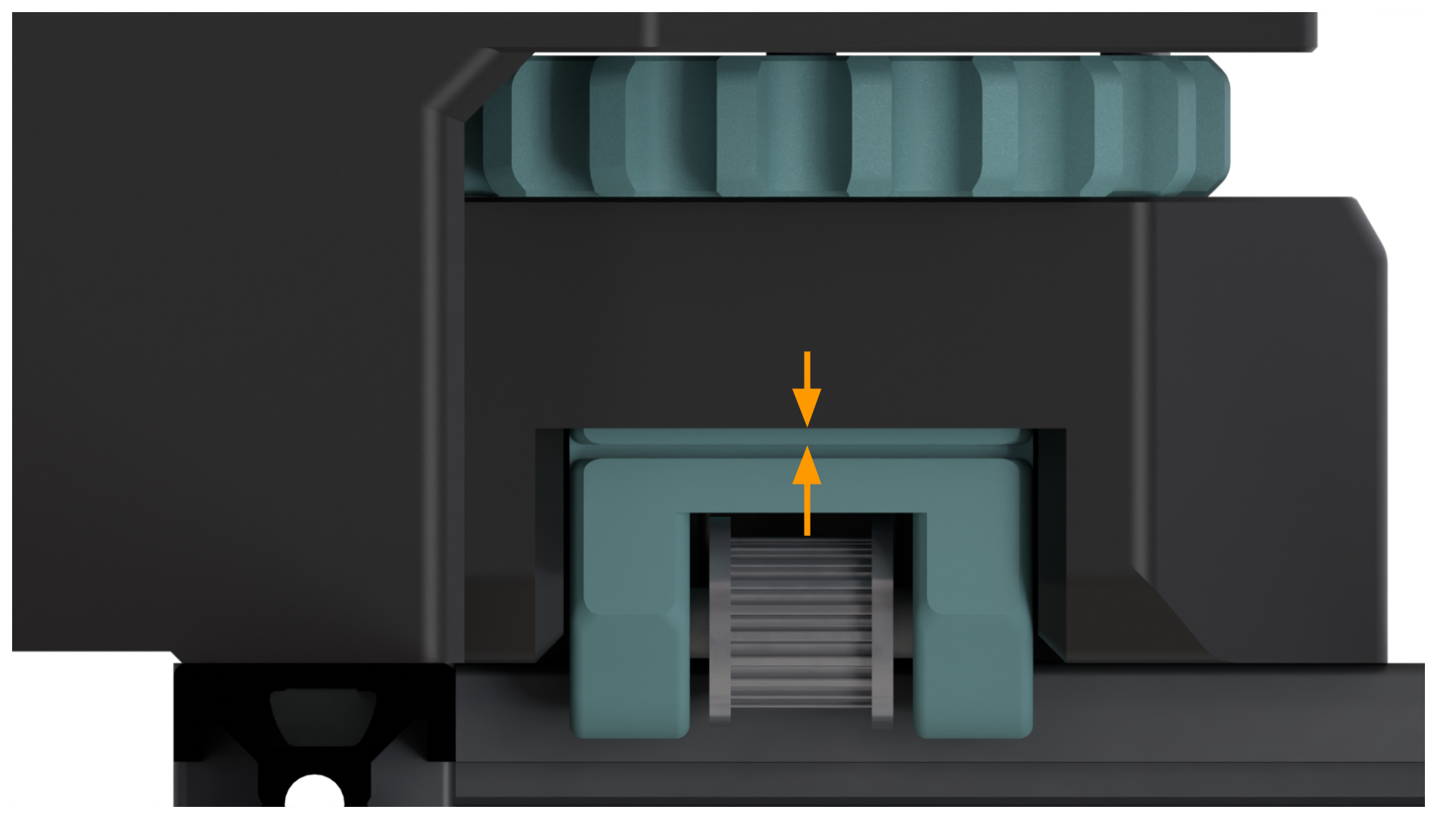

- Rotate the Tensioner Knob to screw the Tensioner down, leaving about 10mm of space below the Tensioner
- Screw the M5x60 BHCS from Step 1 through the Foot Base, Tensioner Knob, and Foot Frame into the aligned t-nut
3. Attach the Swivel Foot
- Insert the Replaceable Thread Plug (long hexagon shape) into the Foot Base and the M8 Hex Nut in its slot

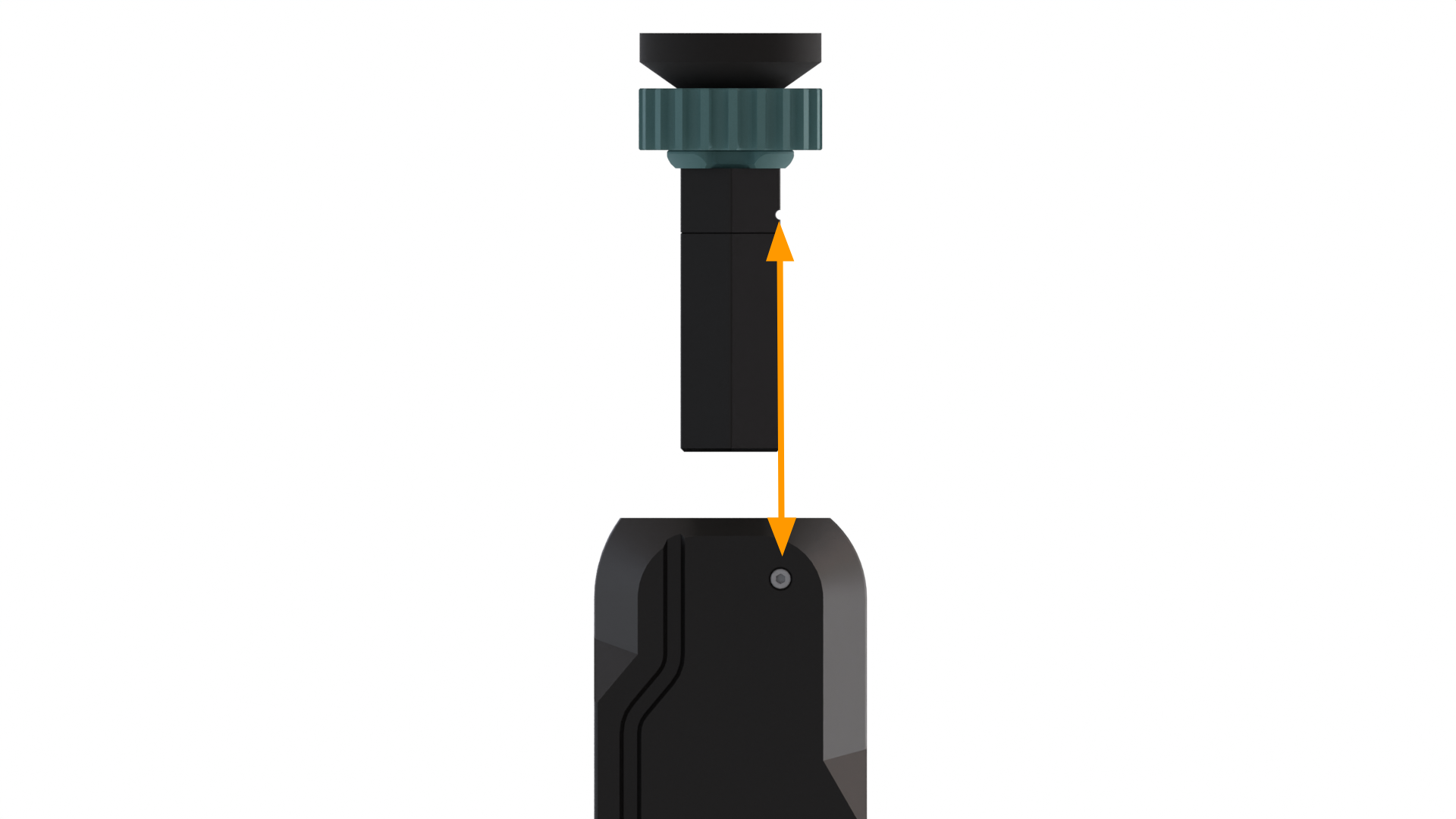

- The Replaceable Thread Plug Retainer has a divet that needs to align to the M3 hole on the front of the Foot Base
- Push the Retainer against the Thread Plug and lock the stack with the M3x45 SHCS
- Slide the Height Adjustment Knob onto the Swivel foot, and make sure it fits over the hex nut
- Rotate the Height Adjustment Knob to screw the Swivel Foot into the Foot Base
