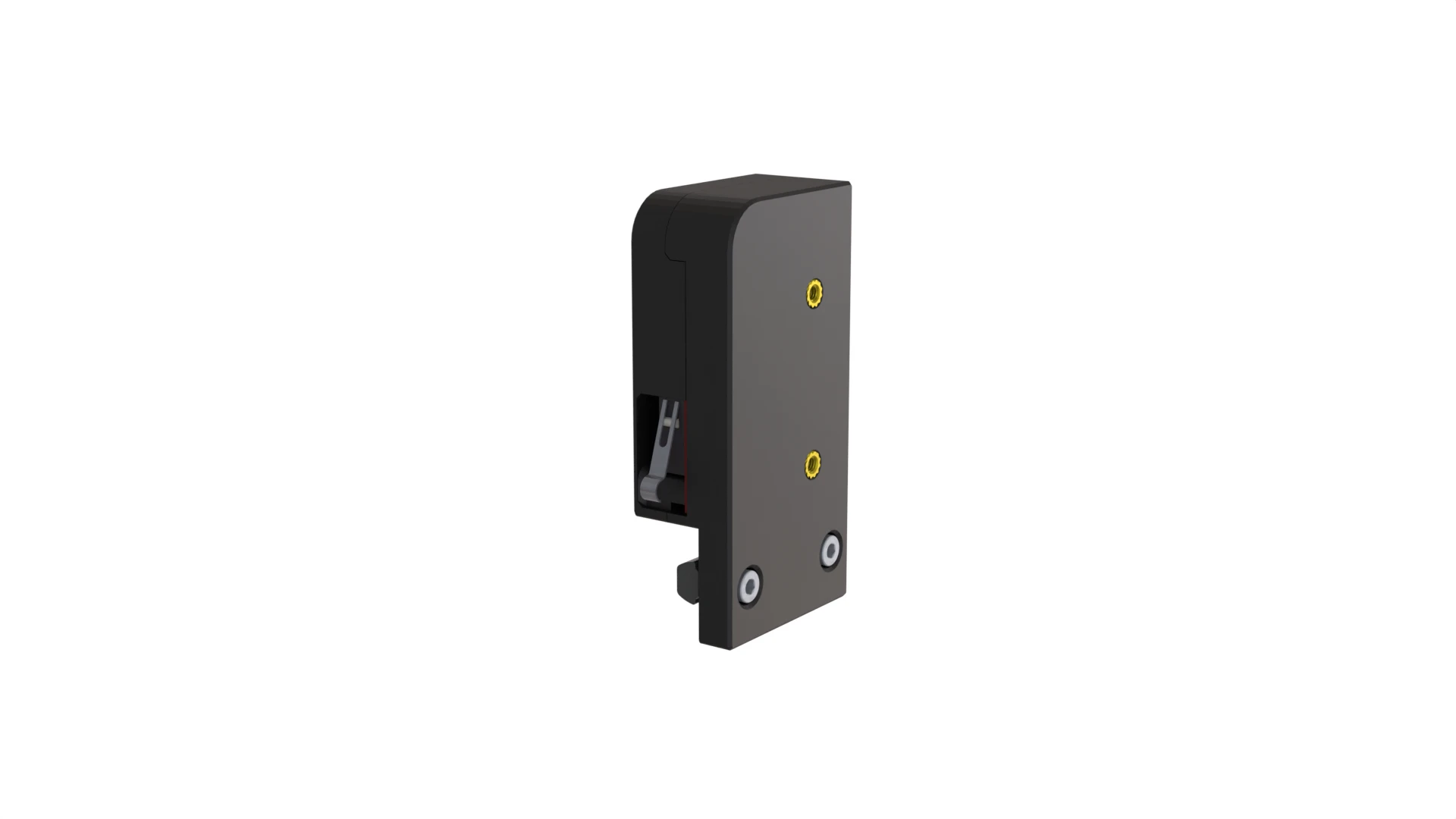

Y Endstop
Materials
| Hardware | Qty |
|---|---|
| M3x5.7 Brass Insert | 2 |
| M3x8 SHCS | 2 |
| M3x16 SHCS | 2 |
| M3 Roll-In Nut | 2 |
| Cables |
|---|
| Z-72 |
| Printed Parts | Qty |
|---|---|
| Y Endstop Pod | 1 |
| Y Endstop Pod Cap | 1 |
| Cable Cover 55mm | 1 |
Animated Assembly
Assembly Notes
- 5:43 Make sure the Force Sensor wires are routing into the channel in the Y Endstop Pod.
- 6:42 Continue to Safety Switch
