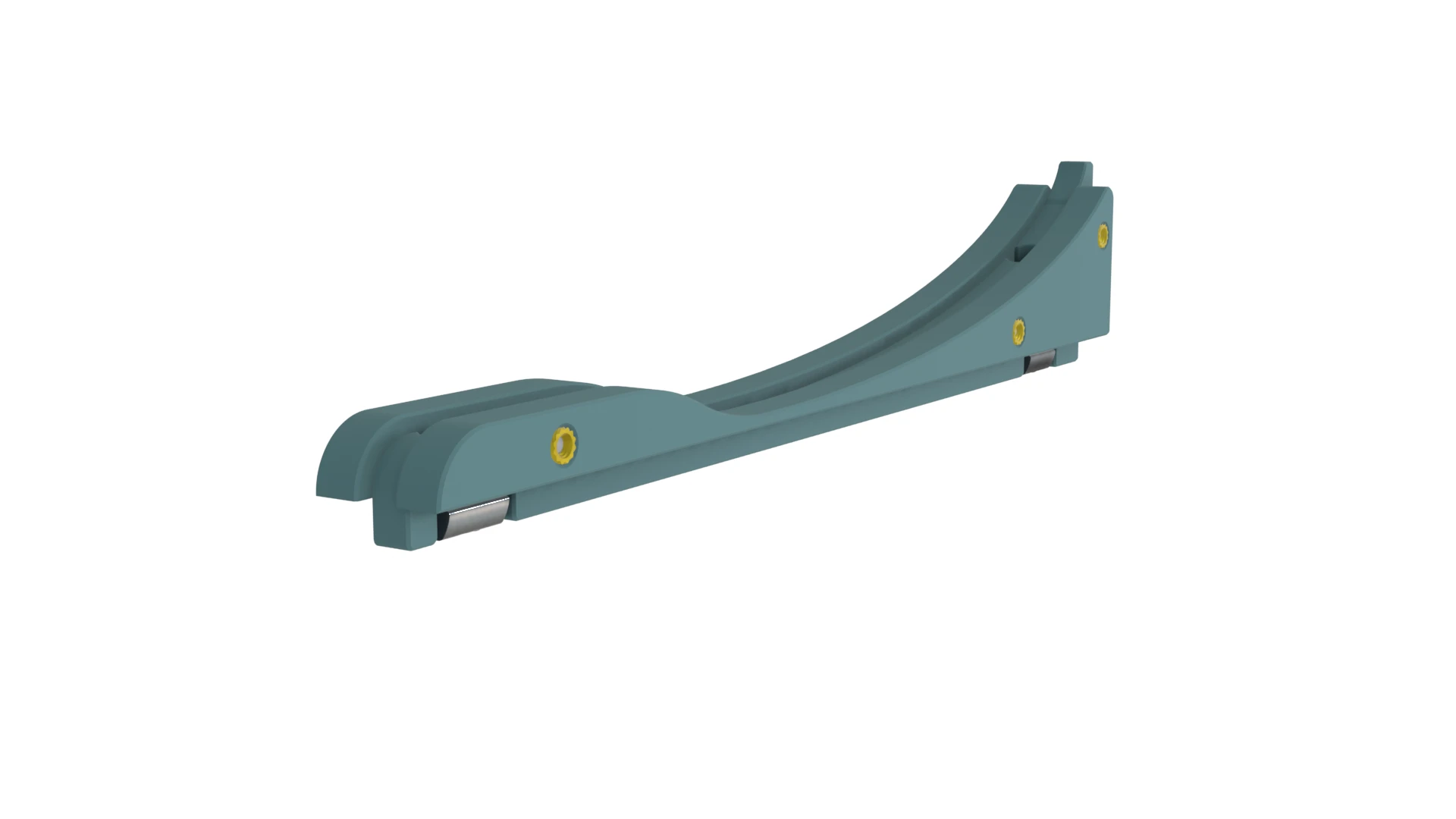

Wheel Ramps

Materials

Hardware - Wheel Ramp (for each side) Qty
M3x16 SHCS 4
M3x8 SHCS 1
M3 Roll-In Nut 2
M3x5.7 Brass Insert 3
Printed Parts Qty
Wheel Ramp A Inside 1
Wheel Ramp A Outside 1
Wheel Ramp B Inside 1
Wheel Ramp B Outside 1
Wheel Ramp Center 2

Animated Assembly

Assembly Notes

  • 0:10 Wheel Ramp - Center is the same on both sides.
  • 0:30 Make sure the holes in the roll-in nuts align with the holes in the Wheel Ramp. Don’t over-tighten front mounting screw! There isn’t a lot of material there, so it’s a bit fragile.
  • 0:46 Continue to Bed Lever Striker

Interactive View
