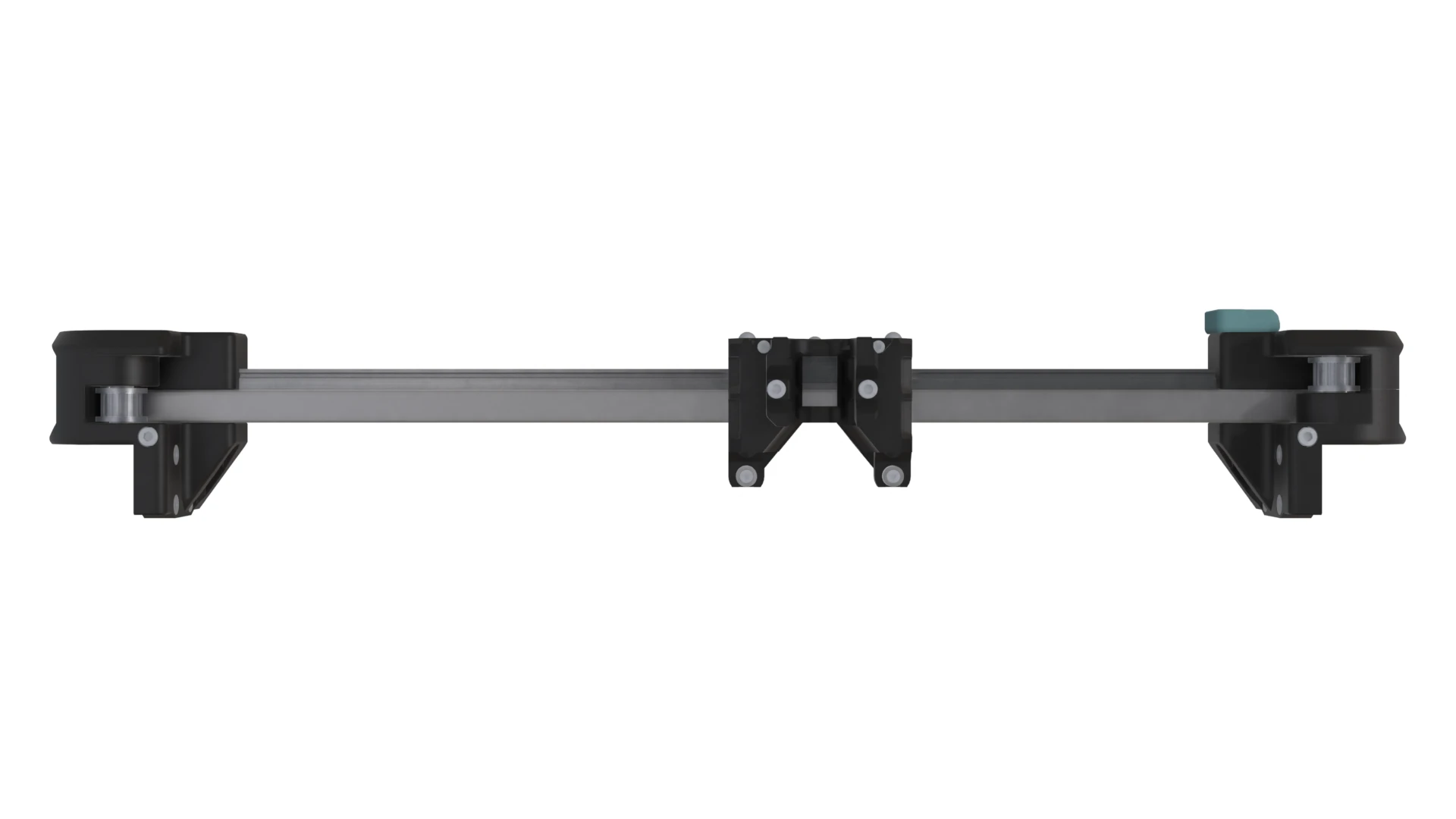

Gantry Bar
Materials
| Hardware - XY Joint (for each side) | Qty |
|---|---|
| Shoulder Screw - 25mmx5mm Shoulder - M4x4.5 Thread (M4x25mm) | 2 |
| Bearing - F695 | 2 |
| Gates GT2 Toothed Idler Pulley - 6mm Belt | 1 |
| M5x10x1 Washer | 2 |
| M5x7x1 Washer (Washer M5) | 2 |
| M5x20 BHCS | 1 |
| M5x30 BHCS [M5x35 BHCS for Side B] | 1 |
| M3x30 SHCS | 1 |
| M3x35 SHCS | 1 |
| M3x12 FHCS | 4 |
| M5 Roll-In Nut | 1 |
| M5 Hex Nut | 1 |
| M4 Hex Nut | 2 |
| M3x5.7 Brass Insert | 2 |
| Hardware - X Axis | Qty |
| Extrusion 2010-370-Z5-ZA25-XB345 | 1 |
| MGN9H-300 Linear Guide | 1 |
| M3 Roll-In Nut | 7 |
| M3x8 SHCS | 7 |
| Hardware - X Carriage Block | Qty |
| Magnet - 1/2in Countersunk | 4 |
| Magnet - 1/4in Countersunk | 2 |
| Makerbeam XL T-Nut | 2 |
| M3x8 SHCS | 1 |
| M3x30 SHCS | 2 |
| M3x16 SHCS | 2 |
| M3x8 FHCS | 4 |
| M3 Cap Nut (Acorn Nut) | 3 |
| M2x16 SHCS | 2 |
| M2x8 FHCS | 2 |
| M2 Hex Nut | 2 |
| Printed Parts | Qty |
|---|---|
| XY Joint A - Bottom | 1 |
| XY Joint A - Carriage | 1 |
| XY Joint A - Top | 1 |
| XY Joint B - Bottom | 1 |
| XY Joint B - Carriage | 1 |
| XY Joint B - Top | 1 |
| XY Joint B - Endstop Block | 1 |
Animated Assembly
Assembly Notes
- 0:26 The M4 Nuts may not stay in their pockets, but they will be tightened into them soon, just don’t lose them in the meantime.
- 3:02 The assembly process is the same on this side but note from the video and the interactive model below that the locations of the toothed and smooth idlers are different. There is also no Endstop block on this side, so an M5x30 BHCS is used instead where the M5x35 BHCS is on side B.
- 4:01 These M2 SHCS add a bit of rigidity. You can use glue when threading.
- 4:30 See the magnet polarity information below. Magnets are fragile! Do not over-tighten!
- 4:52 Installing these is easiest if each magnet is screwed down one at a time, otherwise they may attract, come loose from their pockets, snap together, and break. These are the magnets that should be used as a reference for others magnets, as described below. They are all the same polarity and relatively accessible.
The Gantry Bar should slide easily along the full travel of the y-axis rails. If there are areas where you feel higher resistance than others, you may need to check the y-axis rail alignment, or possibly the alignment of the gantry extrusions on the frame.
Magnet Polarity
