Enclosure Lights
Materials
| Hardware (for each light) | Qty |
|---|---|
| M3x8 SHCS | 2 |
| M5x10 BHCS | 2 |
| M3x4.3 Brass Insert (4.5) | 2 |
| M5 Roll-In Nut | 2 |
| Cables |
|---|
| Z-57 |
| Z-58 |
| Printed Parts | Qty |
|---|---|
| Frame Light Bracket A | 1 |
| Frame Light Bracket B | 1 |
Animated Assembly
Assembly Notes
Watch to the end and see the wiring image below before installing.

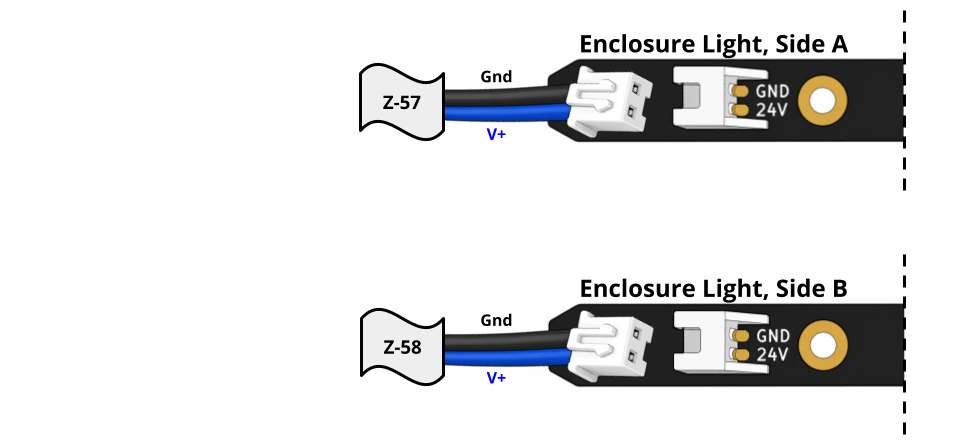

Enclosure Light Wiring
