Electronics Backpack

Materials

Hardware	Qty
DIN Rail - 400mm	3
M4x6 FHCS	4
M3x45 SHCS	4
M3x25 SHCS	4
M3x20 SHCS	2
M3x16 SHCS	2
M3x12 SHCS	8
M3x10 SHCS	20
M3x8 SHCS	12
M3x8 FHCS	2
M3x5.7 Brass Insert	14
M3 Hex Nut	14
Solid State Relay (SSR)	1
Fuse Holder	1
Fuse Nut and Washer	1
AC Inlet & Switch	1
DC Power Supply (PSU)	1
BTT Manta 8P Mainboard (M8P)	1
DIN Rail Terminal Block - Black	10
DIN Rail Terminal Block - Grey	11
DIN Rail Terminal Bus Bar Connector - 2-node	3
DIN Rail Terminal Bus Bar Connector - 4-node	2
DIN Rail Terminal Bus Screws	14
Axial Fan - 4020	2

Printed Parts	Qty
AC Power Plug DIN Clip Adapter	1
Electronics Backpack Base A	1
Electronics Backpack Base B	1
Electronics Backpack Side A S1	1
Electronics Backpack Side A S2	1
Electronics Backpack Side B S1	1
Electronics Backpack Side B S2	1
Electronics Backpack Side Pin	2
DIN Rail Clip	14
Fan Duct MCU - Optional	1
Fan Duct Stepper Drivers - Optional	1
Manta 8P DIN Clip Adapter S1	1
Manta 8P DIN Clip Adapter S2	1
Peripheral Connector Housing Aux	1
Peripheral Connector Housing Endstops	1
PSU DIN Clip Adapter S1	1
PSU DIN Clip Adapter S2	1
PSU Support Bracket	1
PSU Vent	1
SSR M3 Spacer	2
SSR Mount & Fuse Holder	1
SSR Mount Clip S1	1
SSR Mount Clip S2	1

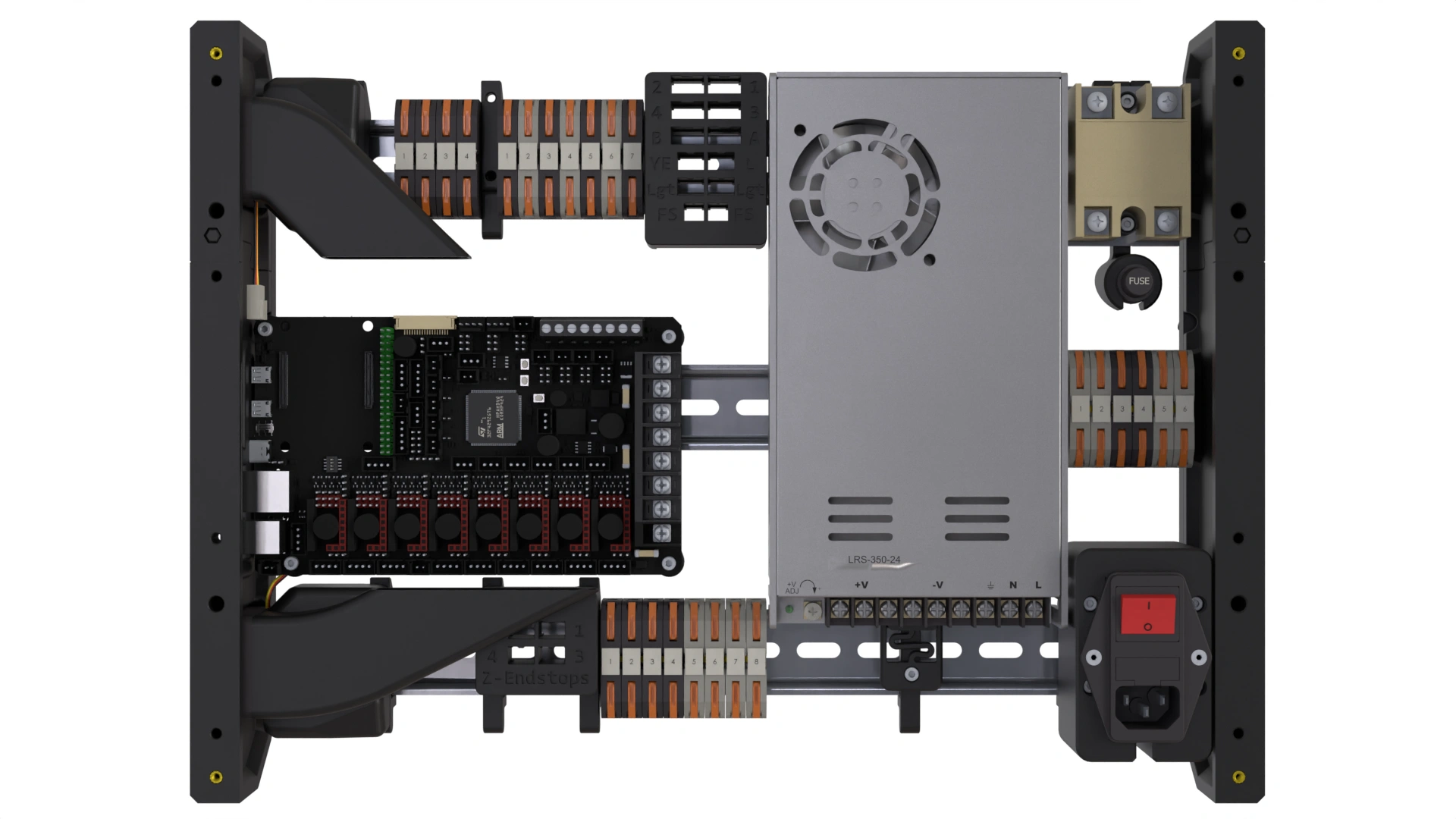

1:48 When placing components, looking at the DIN Rail assembly from above, Electronics Backpack Base A (with the slotted holes) should be on the right and the SSR should be on the top DIN rail all the way to the right.
5:58 This step is only needed if you don’t have the Monolithic Electronics Backpack Sides. A bit of glue is recommended but not necessary.

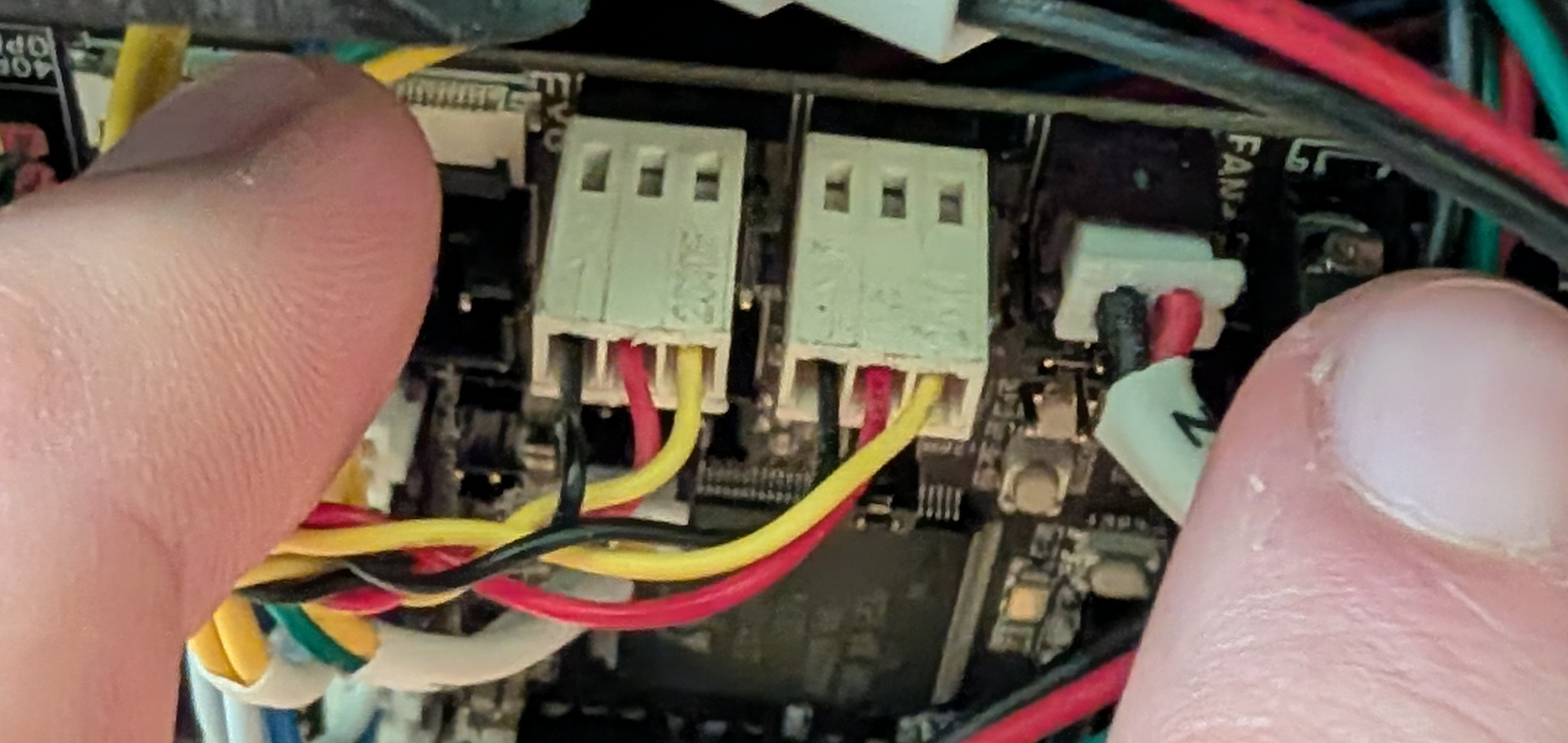

6:13 WIP Fans came wired incorrectly. These need to be wired [Red Yellow Black] –> [Black Red Yellow]

6:48 Complete Steps 1-34 of the Wiring the Electronics Backpack section of the Wiring Guide before continuing.
