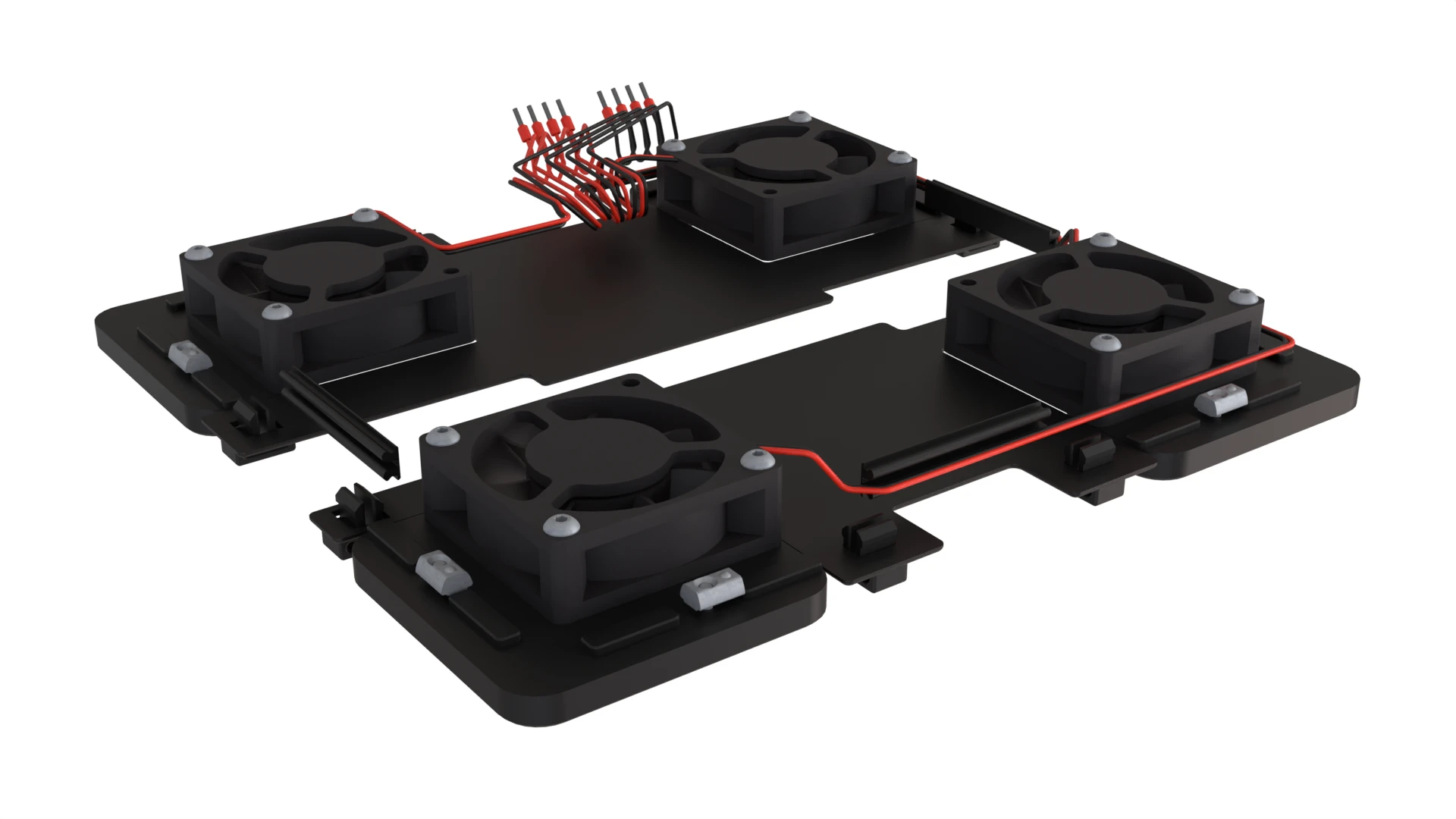

Cooling & Cable Routing

Materials

Hardware Qty
Axial Fan - 6020 4
M4x25 BHCS 12
M3 Roll-In Nut 8
Zip Tie 2
Bed Cables
Z-87 - Z-92
Fan Cables
Z-79 - Z-86

Animated Assembly

Assembly Notes

  • 7:11 These all get the same power and timing, so the order in which they enter the WAGOs is not important; just make sure to leave open the leftmost terminal in this animation frame.
  • 7:25 Extrusion slots are sometimes inconsistent across manufacturers. If the Flow Blocker Clips (or any of the other extrusion clips for that matter) are a bit loose, try scaling them in the axis that would cross the slot width ~1%.
