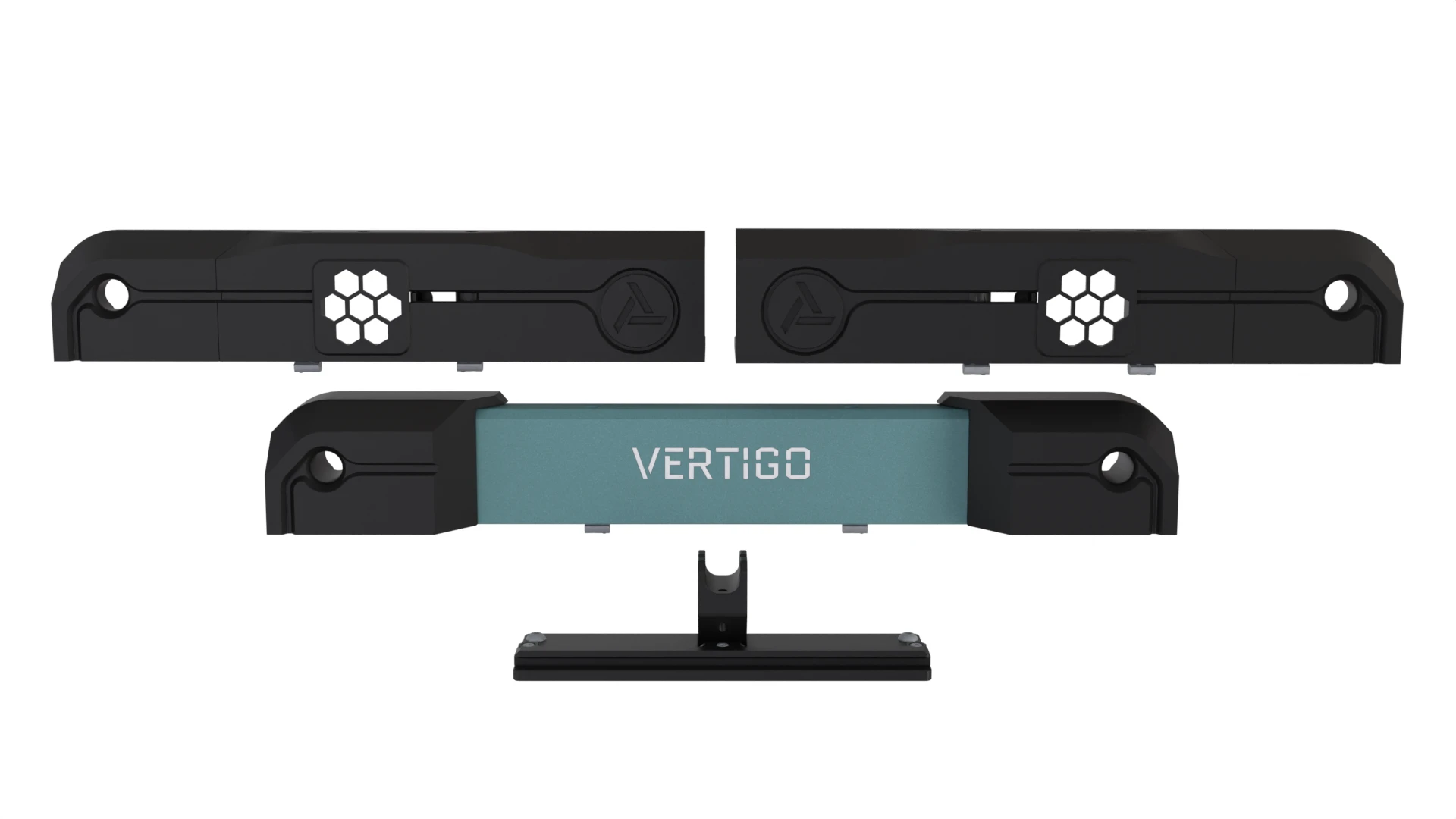

Facades, Panel Mount, and Cable Routing
Materials
| Hardware | Qty |
|---|---|
| M5x10 BHCS | 3 |
| M5 Roll-In Nut | 3 |
| M3x45 SHCS | 6 |
| M3x10 SHCS | 7 |
| M3 Roll-In Nut | 6 |
| M3x5.7 Brass Insert | 7 |
Animated Assembly
Assembly Notes
We don’t yet have fans here, but there are places for them in the Facade Sides to allow for future design possibilities, potentially to help exhaust warm air from the top of the chamber to help speed up cooling time between ejections.
